China Automotive Human-Machine Interaction (HMI) Research Report, 2020
  • Feb.2020
  • Hard Copy
  • USD $2,000
  • Pages:42
  • Single User License
    (PDF Unprintable)
  • USD $1,800
  • Code: FHY002
  • Enterprise-wide License
    (PDF Printable & Editable)
  • USD $2,700
  • Hard Copy + Single User License
  • USD $2,200


Automotive HMI refers to the process of information exchange between humans and the car through interaction means such as voice, gesture, face, AR, holographic display and fingerprint recognition.

Over a decade of development, in-car voice interaction was installed to 28.7% of vehicles and even a higher share of new models on the market in the first half of 2019. Voice interaction is extending from infotainment (navigation, multimedia, etc.) to body control (windows, sunroof, lights, wipers, trunk, etc.) and life services (car-home connectivity, in-car shopping, etc.), and voice technology is getting through to infotainment protocols and in-car ecology.

Gesture recognition was first found in BMW model in 2015, and has been successively available in China-made models such as the Traum SEEK 5, Chery 5X, Xpeng G3 Premium, etc. It is mainly used to control the display system in the car, such as music play, volume regulation, map zoom, etc., as a supplementary interactive mode in a quiet environment.

Face recognition, unveiled in China in 2018, has been seen in Leapmotor S01, Chery’s EXEED TX, WEY VV6, WM Motor’s EX5, Geely Xing Yue and other models, showing a rosy prospect. Face recognition is mostly for personalized settings (seat position, ambient light preference, rearview mirror position, music recommendation, etc.) and driver status detection. EXEED TX supports to buy movie tickets by face scanning and heads toward face payment.

In addition, new interactive modes like window interaction (WM Motor's EX5), body interaction (BAIC BJEV's LITE), vein recognition (Leapmotor SO1), fingerprint recognition (Hyundai’s New SantaFe), and AR navigation (Roewe Marvel X) have been available onto production vehicles.


Foreign automotive HMI systems include BMW iDrive, Mercedes-Benz MBUX, Audi MMI, Ford SYNC +, etc. Among them, BMW iDrive has iterated to 7.0, with 6 interaction modes covering button, knob, touch, gesture, voice and cellphone. BMW iDrive is the first system in the world that adds gesture interaction, which can control phone calls, music playback, volume, map, menu, etc.

Chinese automotive HMI systems mainly embrace Geely GKUI, BYD DiLink, GAC ADiGO, SAIC Banma, Chery Lion, NextEV NIO OS, Xpeng Xmart OS, etc. Among them, Geely GKUI has been upgraded to GKUI2019 with 8 interaction modes via button, knob, touch, voice, cellphone, HUD, face recognition, and smart watch, where unique features are watch interaction (mainly ideal for remote car control and vehicle information inquiry like mobile phone interaction) and face recognition (FACE ID personalized settings).

In short, automotive HMI has entered the multi-modal (voice, gesture, face, etc.) interaction stage and is heading toward functional enrichment and multi-modal fusion. Moreover, HMI will transfer from in-vehicle interaction to multi-scenario interaction, from "passive interaction" to "active interaction".

China Automotive Human-Machine Interaction (HMI) Research Report, 2020 highlights the followings:
20120114.gifHMI (definition and development history), automotive HMI (design, development course, etc.);
20120114.gifAutomotive HMI modes (voice interaction, face recognition, gesture recognition, and display inside and outside the vehicle);
20120114.gifDevelopment history and modes of HMI systems of automakers at home and abroad, such as BMW iDrive, Mercedes-Benz MBUX, Audi MMI, Geely GKUI, SAIC Banma SmartDrive, Chery Lion, BYD DiLink, GAC ADiGO, NextEV NIO OS, etc.
20120114.gifDevelopment trends of automotive HMI.

1 Development History of Automotive HMI
1.1 Definition of HMI
1.2 Development History of HMI
1.3 Development History of Automotive HMI
1.4 Design of Automotive HMI

2 Automotive HMI Modes
2.1 Overview
2.2 Vehicular Voice Interaction
2.2.1 Introduction
2.2.2 Status Quo
2.3 Vehicular Face Recognition
2.3.1 Introduction
2.3.2 Status Quo
2.4 Vehicular Gesture Recognition
2.4.1 Introduction
2.4.2 Status Quo
2.5 Display Inside and Outside the Vehicle
2.6 Other Interactive Modes

3 Automotive HMI System
3.1 Latest HMI Systems of Automakers at Home and Abroad
3.2 BMW iDrive7.0
3.2.1 HMI System Development History and Introduction
3.2.2 Models Supported by iDrive7.0
3.3 Mercedes-Benz MBUX
3.3.1 HMI System Development History and Introduction
3.3.2 Models Supported by MBUX
3.4 Audi MMI
3.4.1 HMI System Development History and Introduction
3.4.2 Models Supported by MMI
3.5 Geely GKUI
3.5.1 HMI System Development History and Introduction
3.5.2 Models Supported by GKUI
3.6 SAIC Banma
3.6.1 HMI System Development History and Introduction
3.6.2 Models Supported by Banma
3.7 Chery Lion
3.7.1 HMI System Development History and Introduction
3.7.2 Models Supported by Lion
3.8. BYD DiLink
3.8.1 HMI System Development History and Introduction
3.8.2 Models Supported by DiLink
3.9 GAC ADiGO
3.9.1 HMI System Development History and Introduction
3.9.2 Models Supported by ADiGO
3.10 NextEV NIO OS
3.10.1 Introduction to the System and Models Supported

4 Automotive HMI Tendencies
4.1 In-vehicle Interaction to Multi-scenario Interaction
4.2 Multi-channel Fusion Interaction Will Become the Mainstream Interaction Mode
4.3 Automobiles Will Be Personalized
4.4 From "Passive Interaction" to "Active Interaction"
Development History of HMI
Development History of Automotive HMI
Integration of Automotive HMI Design and Multi-disciplinary Integration
"Pyramid" of Automotive HMI Design
Automotive HMI Design Process

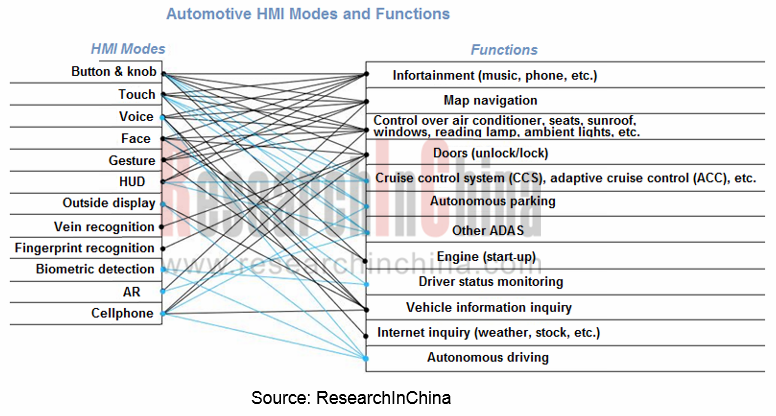

Automotive HMI Modes and Functions
Key Technologies on Voice Interaction
Voice Interaction Industry Chain Companies in China
Installations and Installation Rate of Passenger Car Voice Function in China, 2018-2019
Top 10 Automakers by Passenger Car Voice Installation (Market Share) in China, H1 2019
Functional Configuration of Models with Voice Interaction in China (Some Automakers)
Face Recognition Process and Core Technology
Face Recognition Industry Chain Companies in China
Functional Configuration of Models with Face Recognition in China
Comparison between Three 3D Gesture Recognition Technologies
Gesture Recognition Industry Chain
Functional Configuration of Models with Gesture Recognition in China
Inside and Outside Display of Some Models
Latest HMI Systems of Automakers at Home and Abroad
Evolution of BMW iDrive (1.0 to 7.0)
Evolution of Mercedes-Benz HMI
Evolution of Audi HMI
Evolution of Geely HMI
Evolution of SAIC HMI
Evolution of Chery HMI
Evolution of BYD HMI
Evolution of GAC HMI
‘Public Persona’ Cases of Automakers
