Global and China Automotive Gateway Industry Report, 2019-2020
  • May 2020
  • Hard Copy
  • USD $3,600
  • Pages:195
  • Single User License
    (PDF Unprintable)
  • USD $3,400
  • Code: FHY003
  • Enterprise-wide License
    (PDF Printable & Editable)
  • USD $5,000
  • Hard Copy + Single User License
  • USD $3,800

Automotive Gateway Industry Research: Tenfold Improvement in Gateway Performance Breaks the Bottleneck of Software-defined Vehicles.

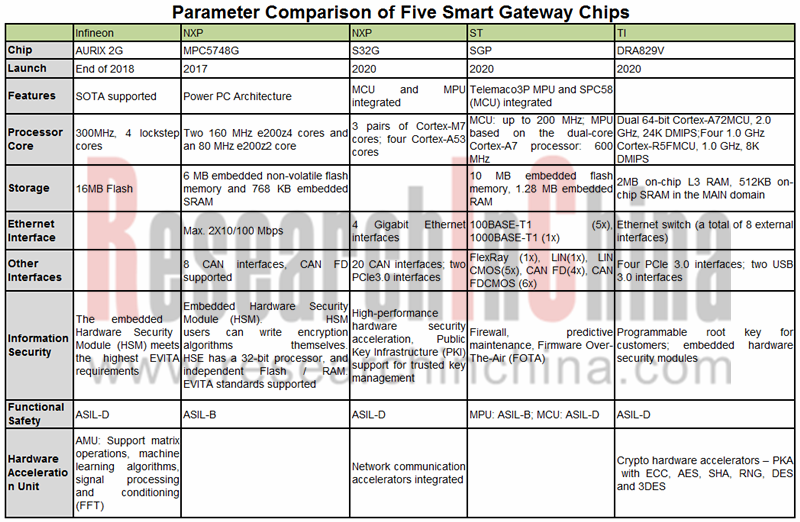

Automotive gateway chip is actually a field with scarcely ever changes in a long period of time, but since 2020, many chip vendors have rolled out new solutions for automotive gateways.

In early 2020, NXP Semiconductors unveiled its new S32G vehicle gateway processor which plays a key part in service-oriented gateways and helps OEMs be the data-driven service providers with expanded business opportunities.

In January 2020, Texas Instruments (TI) introduced the new Jacinto? 7 processor platform on which DRA829V processor is available for gateway systems.

In March 2020, ST released the modular Smart-Gateway Platform (SGP) built on gigabit Ethernet communication between the secure and ASIL-B Telemaco3P microprocessor (MPU) and the ASIL-D SPC58/Chorus microcontroller (MCU) to provide a valuable development tool for prototyping automotive Smart-Gateway and Domain-Controller applications.

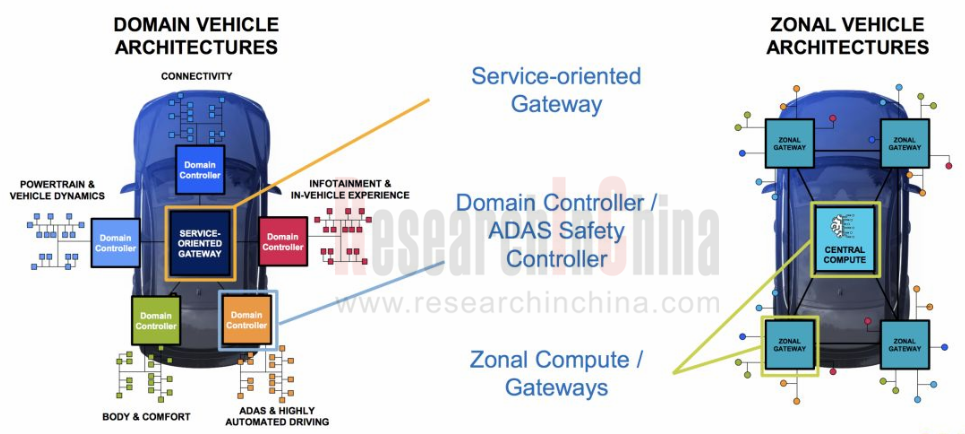

NXP believes that a gateway is a central hub that securely and reliably interconnects and processes data across heterogeneous vehicle networks. It provides physical isolation and protocol translation to route data between functional domains (powertrain, chassis and safety, body control, infotainment, telematics, ADAS) that share data to enable new features. The hardware-centric model of traditional gateways are turning to be a software-based and service-oriented model to support over-the-air (OTA) updates and vehicle analytics with secure communications to OEM servers (cloud), allowing to make adjustments according to the user’s preferences, apply safety updates, address warranty and repair problems, address security vulnerabilities, and enable new features that improve the user experience.

gateway 2_副本.png

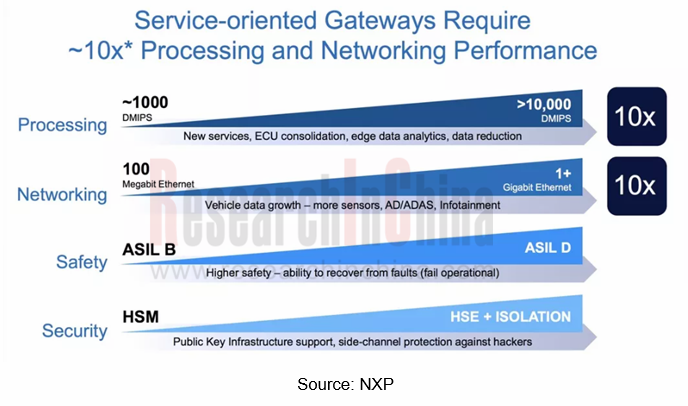

Service-oriented gateways enriches functionality of traditional gateways, getting data processing and network transmission improved by at least ten times, offering new services, integrating ECUs to be responsive to vehicle data surge. Software-defined cars, already a consensus of the industry, require changes in the automotive system architecture, SOA (service-oriented architecture), powerful gateways and domain controllers. To follow this trend, chip giants have launched smart gateways ten times better than previous products.

According to YummyCookiePuff, a WeChat public account, the chips with enhanced capabilities and access to vehicle data make gateway controllers ideal as automotive data servers. In the vehicle design of the domain-based architecture, different domain controllers register services, discover services and use services from gateways. Domain controllers and service-oriented gateways constitute a distributed system inside the vehicle. Automotive data servers with data and computing power are no longer simple route forwarders, not only providing public data storage and sharing services for vehicles but generating new data (such as cross-domain fusion data) from data processing to serve each domain upon demand. Part of telematics data services originally done over the cloud can also be deployed in vehicles, delivering real-time services for automotive HMI and autonomous driving. The design driven by signals and control is being replaced by the data- and service-driven modern vehicle E/E architecture design.

gateway 3_副本.png

Smart gateways exist in many forms: stand alone, integrated with T-BOX, integrated with domain controllers, etc. Now, a dozen vendors offer stand-alone gateways.

Gateways needs developing in harness with software integrated such as network security and OTA. Powerful Tier1 suppliers address software problems by independent R&D and acquisitions, for instance, Continental offers cyber security solutions from Argus and Elektrobit for all connected vehicle electronics (Argus is part of Continental's subsidiary Elektrobit). However, less competitive Tier1 suppliers team up with third-party cybersecurity companies. Given the importance of gateways, some automakers work directly with software providers, e.g., GAC Motor partners with Tata Elxsi to develop smart gateway modules.

1 Automotive Gateway

1.1 Definition and Functionality
1.1.1 Definition of Automotive Gateway
1.1.2 Classification of Automotive Gateways
1.1.3 Core Technologies on Automotive Gateway
1.1.4 Role of Automotive Gateway (I)
1.1.5 Role of Automotive Gateway (II)
1.1.6 Automotive Gateway and OTA
1.1.7 Criteria for Automotive Gateway
1.2 Development Trends of Automotive Gateway

2 Automotive Network and Gateway

2.1 On-board Network at a Glance
2.1.1 Classification and Comparison of On-board Network
2.1.2 The Rise of Automotive Ethernet
2.1.3 Status Quo of Automotive Ethernet Standards
2.1.4 Development Trend of Automotive Ethernet
2.2 On-board Network and Gateway
2.2.1 CAN Bus Gateway
2.2.2 LIN Bus Gateway
2.2.3In-vehicle Ethernet Gateway
2.2.4 T-BOX and Gateway

3 Automotive Gateway Suppliers

3.1 Continental
3.1.1 Profile
3.1.2 Organization Structure
3.1.3 Continental Automotive Gateway
3.1.4 Continental Commercial Vehicle E/E Gateway
3.1.5 Continental Commercial Vehicle E/E Architecture
3.1.6 Continental Passenger Car E/E Architecture
3.2 Bosch
3.2.1 Profile
3.2.2 Development Course of Bosch Central Gateway
3.2.3 Bosch Central Gateway, CGW
3.2.4 Evolution of Next-generation Automotive Architecture
3.3 Aptiv
3.3.1 Profile
3.3.2 Strategic Orientation
3.3.3 Aptiv Central Gateway SCG
3.3.4 Aptiv Smart Vehicle Architecture (SVA)
3.4 Lear
3.4.1 Profile
3.4.2 Introduction to Lear Gateway
3.5 Micron
3.5.1 Profile
3.5.2 Introduction to Micron Gateway
3.6 UAES
3.6.1 Profile
3.6.2 Latest Generation Gateway Controller
3.6.3 Technical Features (I) of UAES Connectivity Gateway
3.6.4 Technical Features (II) of UAES Connectivity Gateway
3.7 Jingwei HiRain Technologies
3.7.1 Profile
3.7.2 Latest Gateway Controller
3.7.3 HiRain T-BOX
3.8 Neusoft
3.8.1 Profile
3.8.2 Neusoft Automotive Safety Integrated Gateway
3.8.3 Neusoft In-car Communication Module
3.8.4 Neusoft T-Box Product Line
3.8.5 Telematics Safety Products
3.9 InHand Networks
3.9.1 Profile
3.9.2 Latest Generation Gateway
3.10 ZHIYUAN Electronics (ZLG)
3.10.1 Profile
3.10.2 Automotive Ethernet Gateway Solutions
3.11 Yaxon Network
3.11.1 Profile
3.11.2 Introduction to Gateway Products
3.12 FEV
3.12.1 Profile
3.12.2 Automotive Gateway Products
3.13 TTTech
3.13.1 Profile
3.13.2 TTTech Ethernet Switch
3.13.3 TTTech Safety Control ECU
3.13.4 TTTech Dynamics in Automotive Sector

4 Automotive Gateway Chip Vendors

4.1 Infineon
4.1.1 Infineon Automotive MCU Product Line
4.1.2 Infineon AURIX 2G Chip
4.1.3 Infineon Automotive Safety Solutions
4.1.4 Introduction to OPTIGA TPM
4.1.5 Central Gateway Solutions
4.1.6 Central Gateway Products
4.1.7 Other Gateway Chips
4.2 NXP
4.2.1 NXP Automotive MCU Product Line
4.2.2 MPC5748G Gateway Chip
4.2.3 NXP Gateway Architecture
4.2.4 NXP Automotive Gateway Solutions
4.2.5 NXP S32G
4.2.6 Gateway Chipset MPC-LS
4.2.7 MPC-LS Reference Design Board
4.2.8 MPC-LS Example Application Software
4.3 Renesas
4.3.1 Renesas Automotive MCU Product Line
4.3.2 Renesas Gateway Chips
4.3.3 Renesas Existing Gateway Technology Solutions
4.3.4 Renesas New Gateway Technology Solutions
4.3.5 Renesas Automotive Gateway Control Unit
4.4 STMicroelectronics
4.4.1 ST Automotive MCU Product Line
4.4.2 ST SPC5 Series MCU
4.4.3 Features of SPC 58 Chorus
4.4.4 SPC 58 Chorus Basic Gateway Solution
4.4.5 Chorus H Series
4.4.6 Chorus Gateway System Show-how
4.4.7 Chorus Gateway System Diagram
4.4.8 ST Stellar
4.4.9 ST Smart Gateway Platform
4.4.10 ST Safety Gateway Solution
4.5 TI
4.5.1 TI Automotive MCU Product Line
4.5.2 TI Gateway Processor (1)
4.5.3 TI Gateway Processor (2)
4.5.4 CAN Gateway and Versatile Gateway Solutions
4.5.5 Smart Automotive Gateway Solution
4.5.6  Smart Telematics Gateway Solution

5 Automotive Gateway Software Providers

5.1 EB
5.1.1 Profile
5.1.2 Classical AUTOSAR Software Stack
5.1.3 Adaptive AUTOSAR Software Stack
5.1.4 Embedded Safety Solution
5.1.5 Collaborations
5.1.6 Other News
5.2 ETAS
5.2.1 Profile
5.2.2 ESCRYPT Automotive Ethernet/IP Firewall Products
5.2.3 ESCRYPT Embedded Intrusion Detection Software
5.2.4 ESCRYPT ECU Safety Software
5.2.5 Collaborations
5.3 KPIT
5.3.1 Profile
5.3.2 AUTOSAR Product System
5.3.3 ST Chip-based AUTOSAR Solution
5.3.4 KPIT’s AUTOSAR Product Roadmap
5.3.5 KPIT Dynamics in Automotive Sector
5.4 Arilou
5.4.1 Profile
5.4.2 Arilou PIPS
5.4.3 Arilou IDPS
5.4.4 Arilou ESH
5.4.5 Collaborations
5.5 GuardKNOX
5.5.1 Profile
5.5.2 Domain Controller Platform
5.5.3 Gateway Products
5.5.4 Vehicle Server
5.5.5 Safety SOA (Service-oriented Architecture) Stack
5.6 Karamba?Security
5.6.1 Profile
5.6.2 Carwall
5.6.3 SafeCAN
5.6.4 Collaborations
